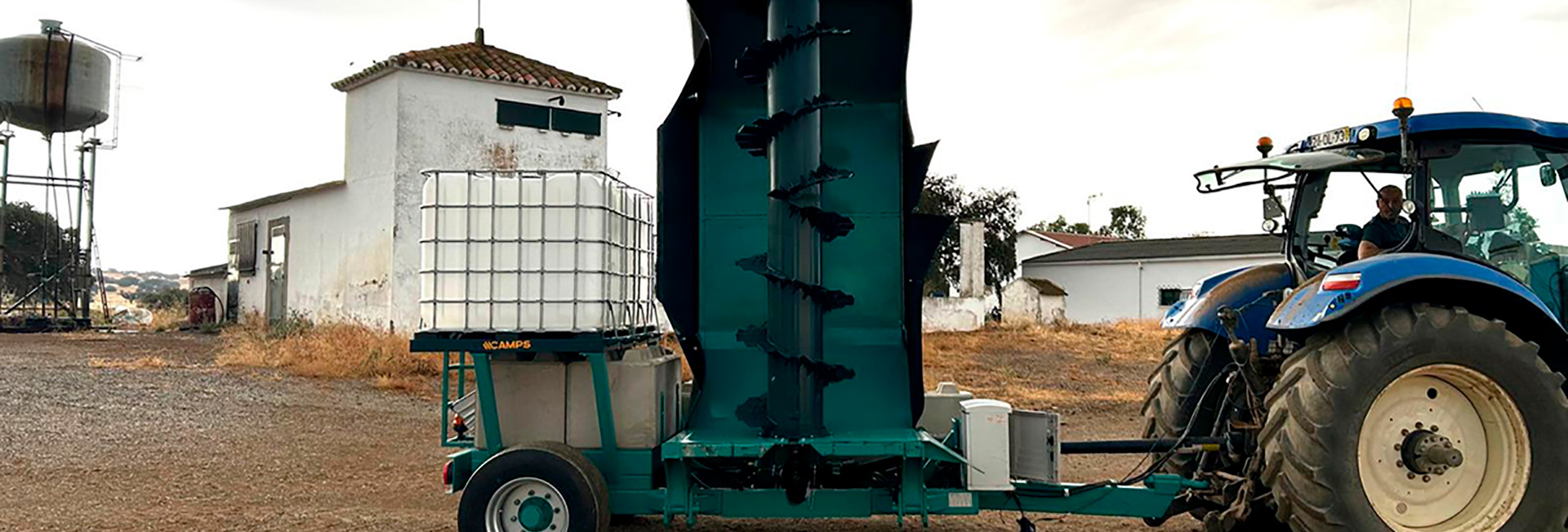

VCC-3500 Trailed Compost Turner (in-cab controls)
3.8 × 1.8 m windrow controlled from the cab. For serious composting plants and large livestock holdings.
Trailed compost turner with in-cab hydraulic control panel, folding, rear gate and side blade. HARDOX 450 on wear zones.
Who it's for
If you run a composting plant or a large livestock holding and you want to operate every function from the cab without getting off the tractor, this is your compost turner. Levelling, rear gate, folding and side blade — all hydraulic.
Concrete benefits
- Windrow 3,800 × 1,800 mm: handles industrial volumes.
- Up to 1,500 m³/h: professional-plant throughput.
- In-cab control panel: zero downtime climbing in and out of the tractor.
- HARDOX 450 + STRENX 700: the machine takes whatever you throw at it.
- Road-legal: move between plants without extra paperwork.
Full specifications
Taken straight from the factory data sheet. No rounding.
| Drive | Trailed (type-approved for public roads) |
|---|---|
| Minimum tractor | 150 hp with super-creeper gears |
| Rotor width | 3.5 m |
| Total transport width | 2.4 m |
| Total length | 4.15 m |
| Tunnel height | 1.8 m |
| Hood | 3,500 × 1,800 mm |
| Rotor diameter | 900 mm |
| Windrow (width × height) | 3.8 m × 1.8 m |
| Turning capacity | 1,000–1,500 m³/h |
| Ideal working speed | 200–400 m/h |
| Hydraulic pressure | 190 bar, 200 L/min |
| Weight | 6,500 kg |
| Wear plates | HARDOX 450 steel |
| Tow points | STRENX 700 steel |
| Hydraulic functions | Levelling, rear gate, hood folding, right side blade (in-cab panel) |
| Maintenance | Grease every 8 working hours |

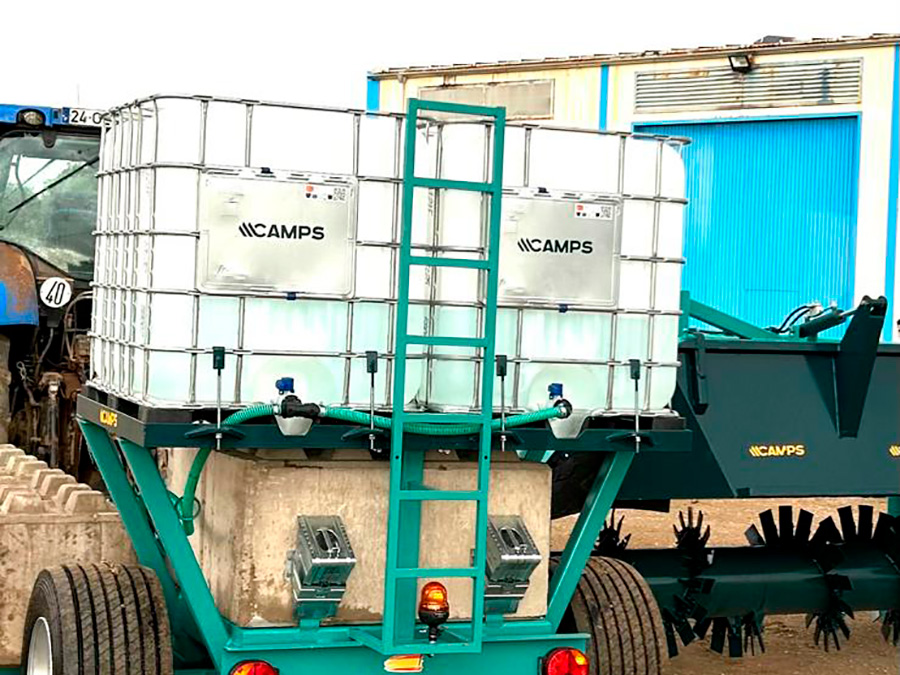

| Optional | One or two 1,000 L irrigation tanks |

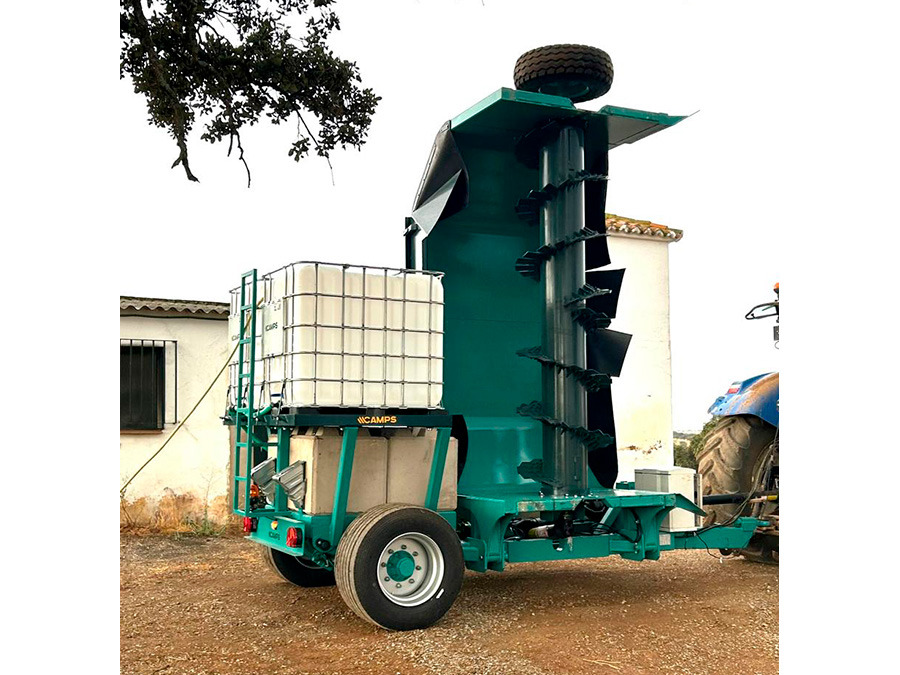

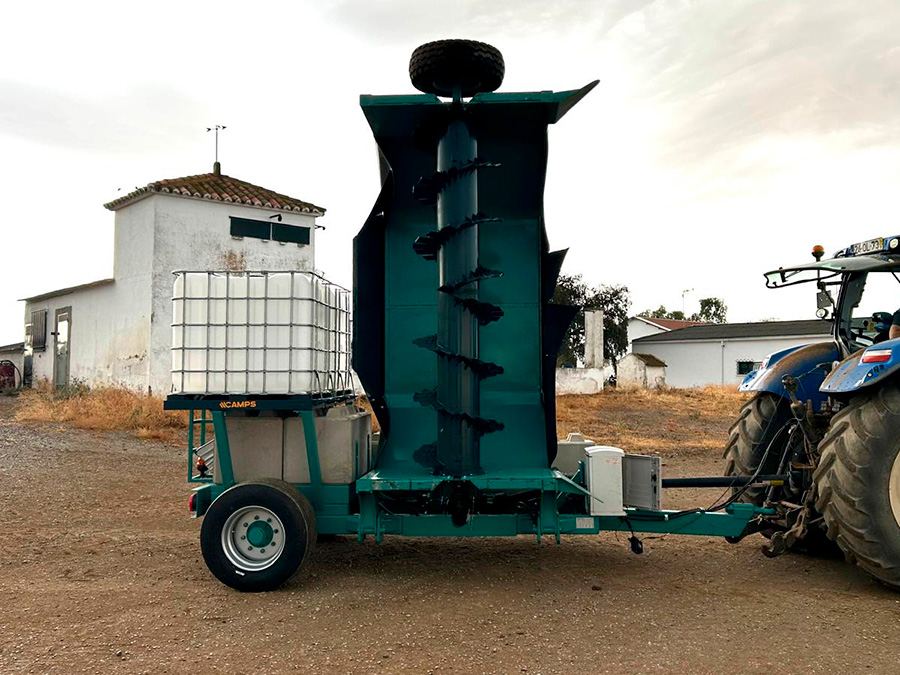

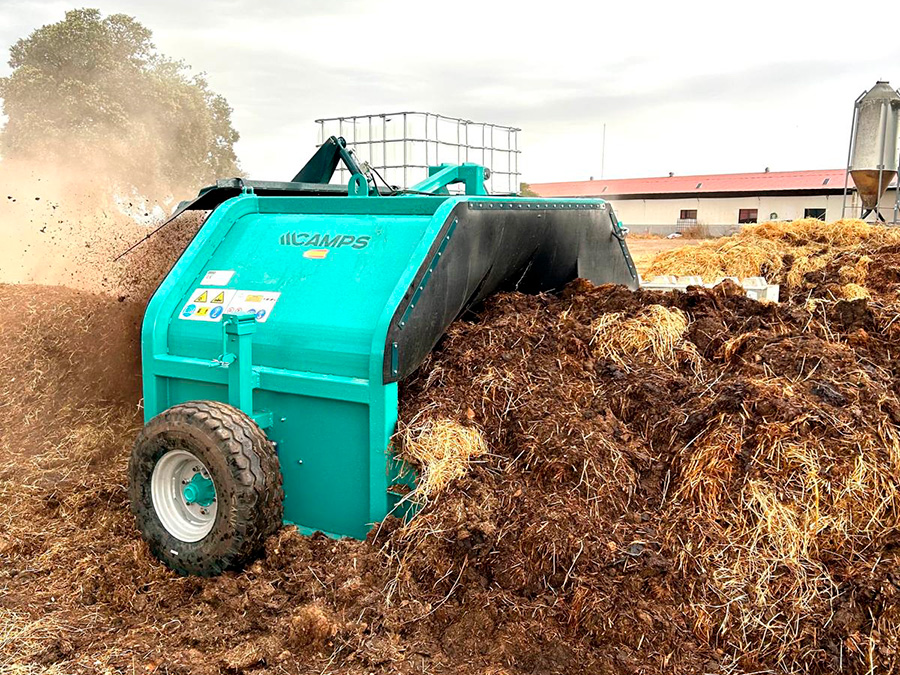

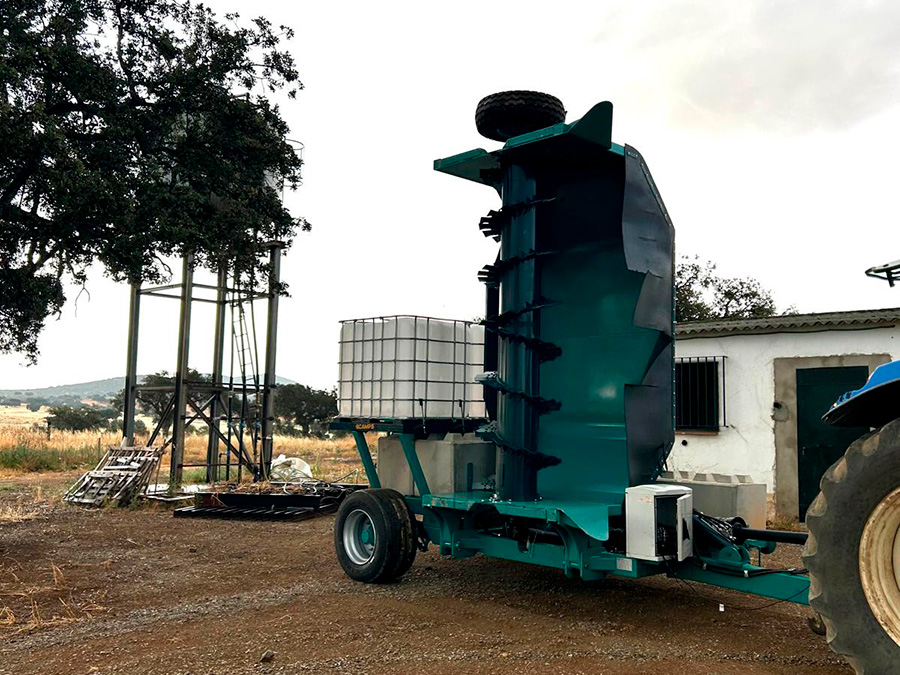

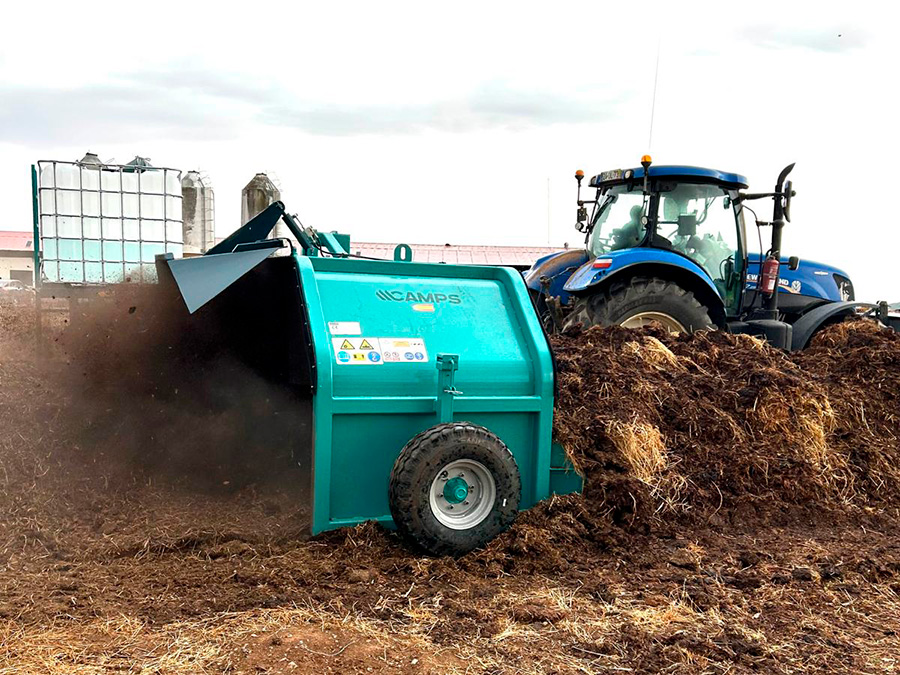

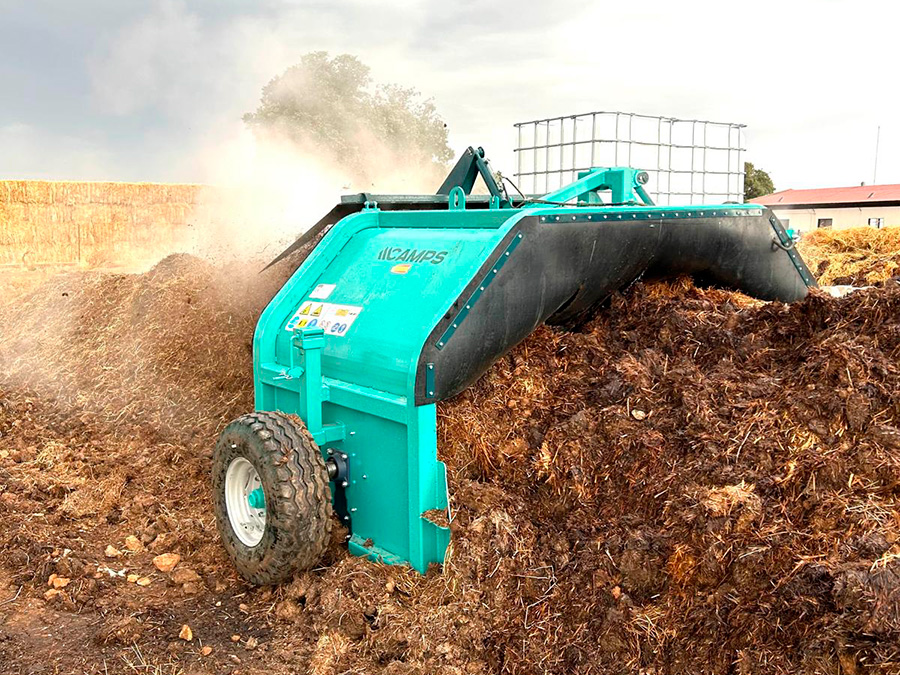

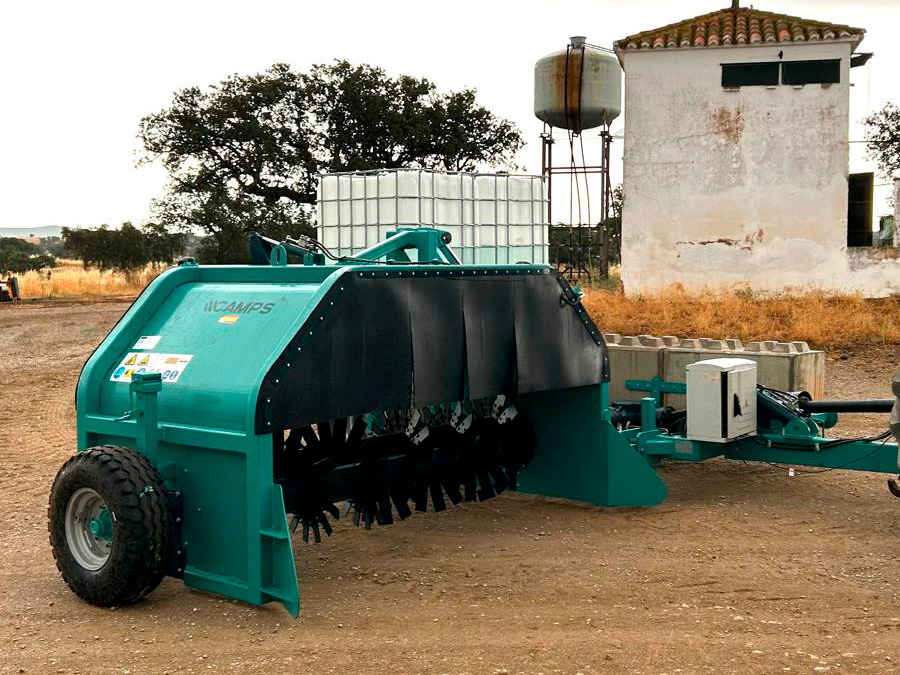

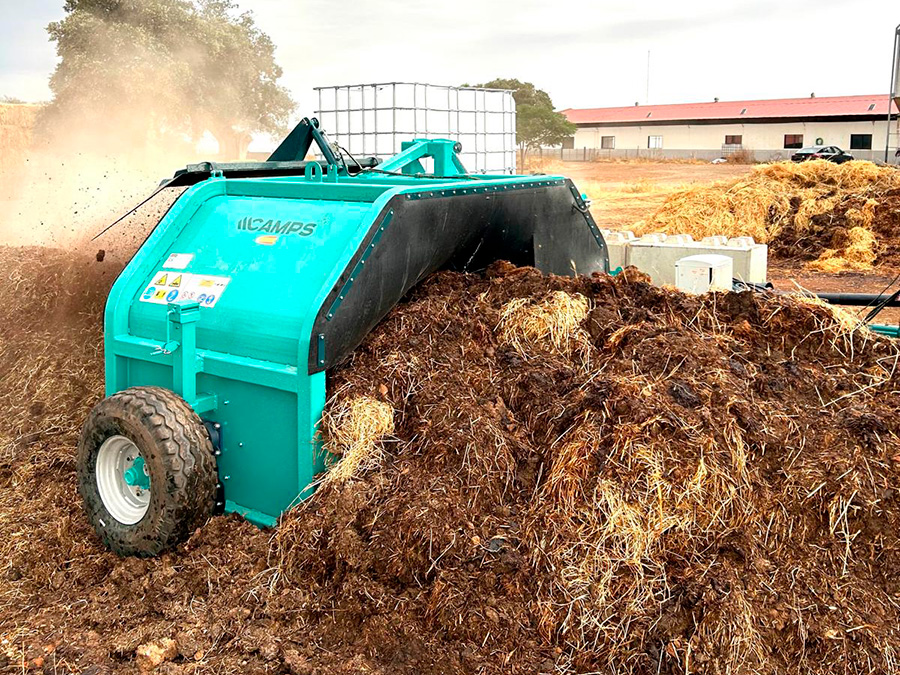

A closer look at the machine
What buyers ask before they decide
What is the minimum tractor I need?
It depends on the model: from 40 hp (VCC-2000) up to 180 hp (VC-4500). The exact figure for this model is in the technical data block above.
How long until I get finished compost?
Between 8 and 12 weeks with proper turning and the correct moisture. We help you dial in the recipe from the first cycle.
Is it road-legal?
The trailed models (VCC and VC-4500) are type-approved for public roads. Mounted models travel attached to the tractor.
How does after-sales support work?
Directly from our factory in Mazaleón (Spain). Spare parts in stock and phone support from the people who built your machine.
Models in the same family

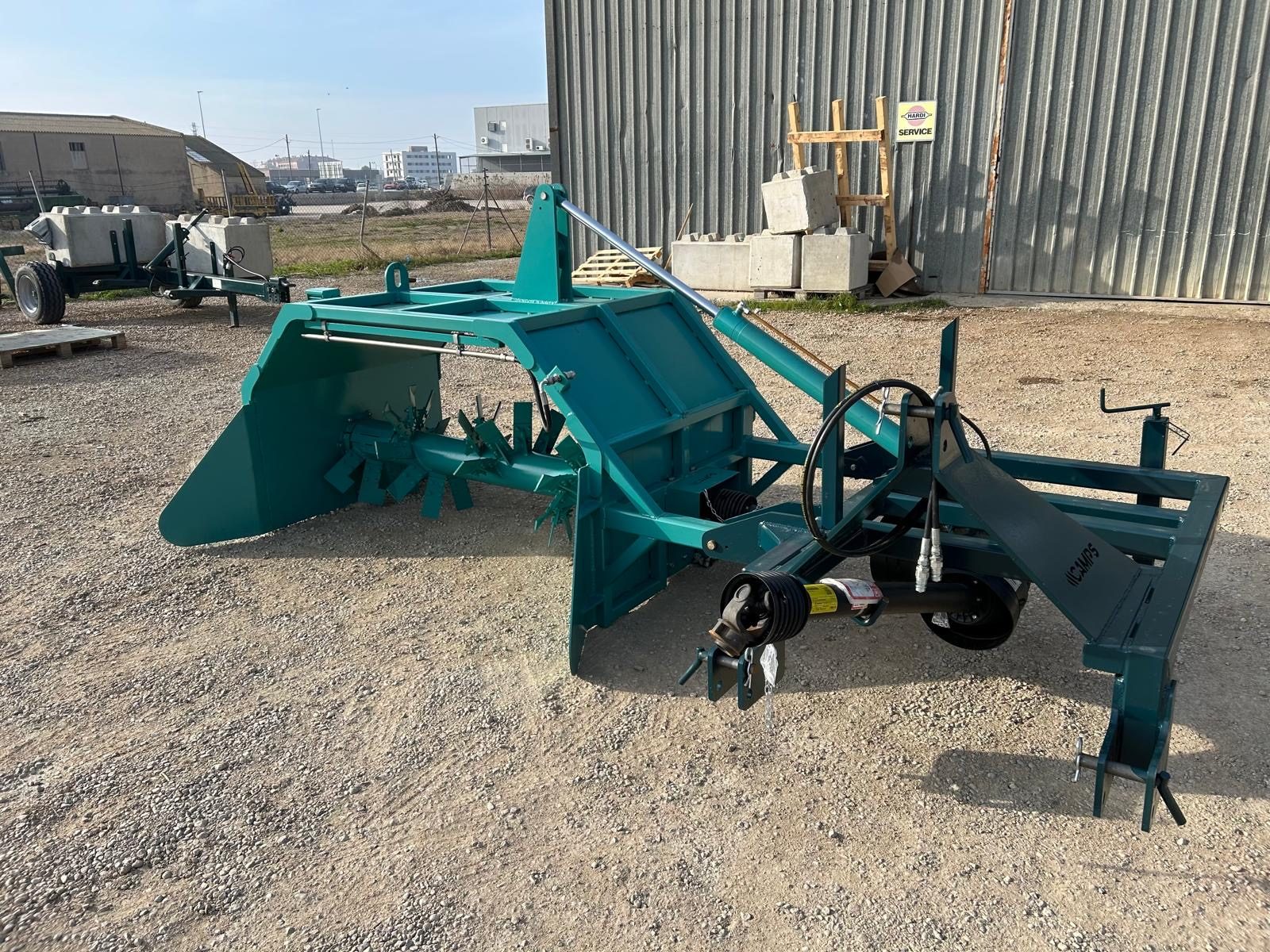

Volteadora de compost VC-1800
